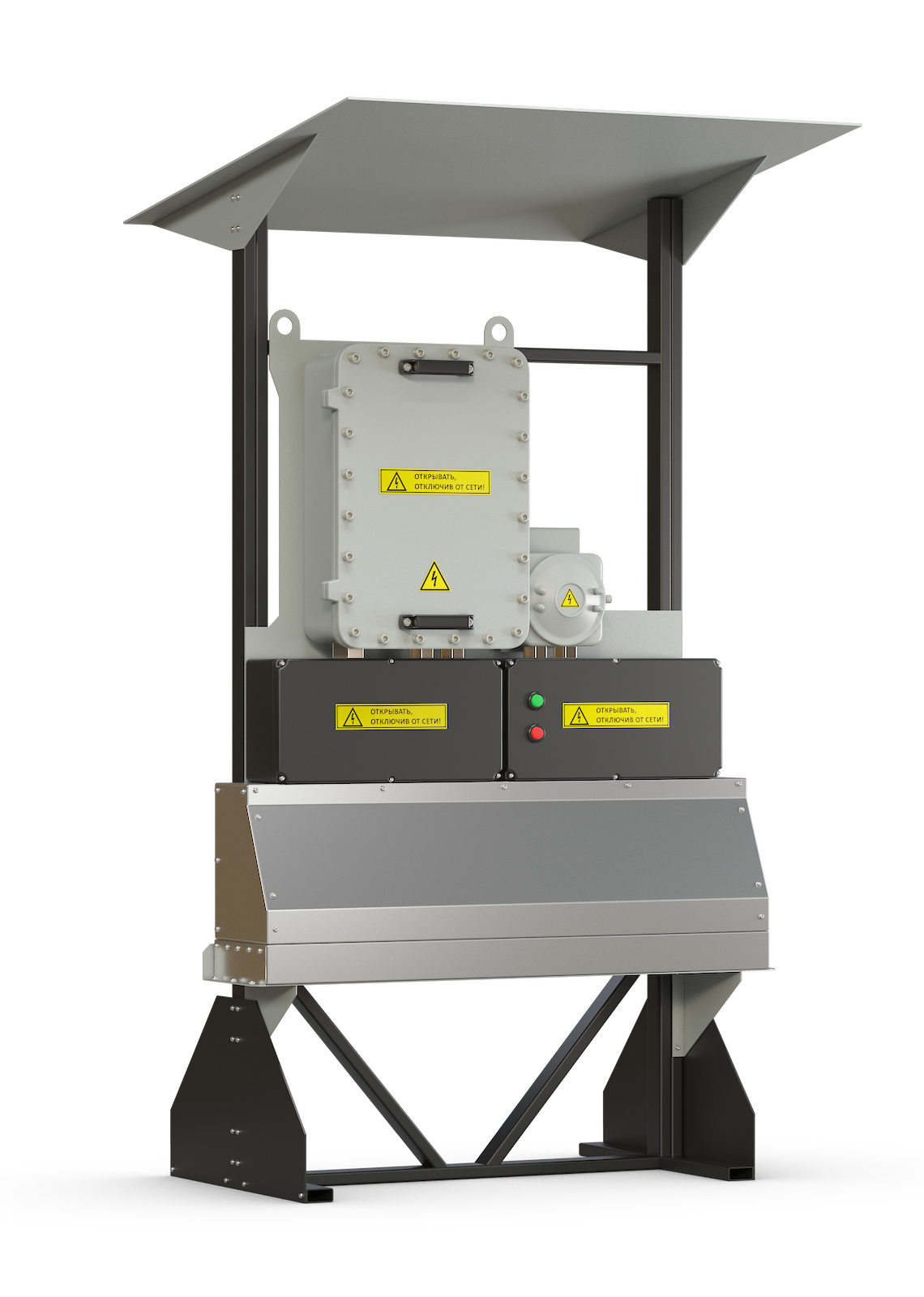

K-CUBE-EJB-C-10-2 Protection and control panel
Description
K-CUBE-EJB-C-10-2 is an X-proof communication and control panel used to establish communication between protection and control panels, measuring and control modules and the central control panel, and to power measuring and control modules.
The panel serves to collect and convert data of EHT control and remote data collection controllers via RS-485 ModBus-RTU, and transmit data over Ethernet via a fibre optic line to the EHT control system. K-CUBE-EJB-C-10-2 links up to 7 lines.
Protection and control panel K-CUBE-EJB-C-10-2 is fabricated as a kit consisting of an Ex enclosure containing communication devices, an Ex enclosure containing an input breaker, two Ex terminal boxes, and a cable tray for external connections.
P.O. Details
The panel may be a typical design mounted on a frame and having an input breaker, a shield, terminal boxes and an enclosure, or a kit based on the customer’s preferences.
Please use the item number from the Marking Table below in your P.O. for an X-proof protection and control panel. K-CUBE-EJBIIB-C-10-2.
Marking
|
Item # |
Design |
|---|---|
|
K-CUBE-EJBIIB-C-10-2 |
IIB |
|
K-CUBE-EJBIIC-C-10-2 |
IIC |
