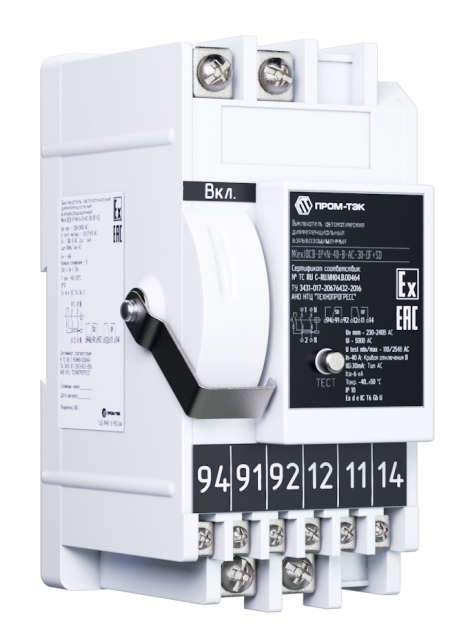

M(ex)DCB Ex Residual Current Circuit Breaker

M(ex)DCB Ex Residual Current Circuit Breaker

Description

Ex Marking

Below 25 A - Ex d e IIC T6 Gb U
Below 40 A - Ex d e IIC T5 Gb U

General Characteristics

Ex Marking
Below 25 A	Ex d e IIC T6 Gb U
Below 40 A	Ex d e IIC T5 Gb U
Operating ambient temperature	-40 to +50 °C
Storage Temperature	-40 to +50 °C
Rated operating voltage	230 В
Auxiliary contacts	24 В DC / 230 В AC
Auxiliary contact current rating	1А AC / 0,5 А DC
Breaking capacity	As given in data sheets
Rated impulse withstand voltage	As given in data sheets
Electrical wear resistance	10000
Mechanical wear resistance	20000
Housing
Material	Fibre glass reinforced thermoset polyester
Colour	White
Dimensions (WxHxD) mm
Modular Design 1	155х61х113
Modular Design 2	155х80х113
Operating position	Vertical, horizontal

Modular Design 1

Rated current	Curve: B
	1P+N
	Differential protection current and rated residual current
	А 30 mА	А 100 mА	А 300 mА	АС 30 mА	АС 100 mА	АС 300 mА
6 А	M(ex)DCB-1P+N-6-В-A-30	M(ex)DCB-1P+N-6-В-A-100	M(ex)DCB-1P+N-6-В-A-300	M(ex)DCB-1P+N-6-В- AС-30	M(ex)DCB-1P+N-6-В- AС-100	M(ex)DCB-1P+N-6-В- AС-300
10 А	M(ex)DCB-1P+N-10- В-A-30	M(ex)DCB-1P+N-10-В-A-100	M(ex)DCB-1P+N-10- В-A-300	M(ex)DCB-1P+N-10- В-AС-30	M(ex)DCB-1P+N-10-В- AС-100	M(ex)DCB-1P+N-10-В- AС-300
16 А	M(ex)DCB-1P+N-16- В-A-30	M(ex)DCB-1P+N-16-В-A-100	M(ex)DCB-1P+N-16- В-A-300	M(ex)DCB-1P+N-16- В-AС-30	M(ex)DCB-1P+N-16-В- AС-100	M(ex)DCB-1P+N-16-В- AС-300
20 А	M(ex)DCB-1P+N-20- В-A-30	M(ex)DCB-1P+N-20-В-A-100	M(ex)DCB-1P+N-20- В-A-300	M(ex)DCB-1P+N-20- В-AС-30	M(ex)DCB-1P+N-20-В- AС-100	M(ex)DCB-1P+N-20-В- AС-300
25 А	M(ex)DCB-1P+N-25- В-A-30	M(ex)DCB-1P+N-25-В-A-100	M(ex)DCB-1P+N-25- В-A-300	M(ex)DCB-1P+N-25- В-AС-30	M(ex)DCB-1P+N-25-В- AС-100	M(ex)DCB-1P+N-25-В- AС-300
32 А	M(ex)DCB-1P+N-32- В-A-30	M(ex)DCB-1P+N-32-В-A-100	M(ex)DCB-1P+N-32- В-A-300	M(ex)DCB-1P+N-32- В-AС-30	M(ex)DCB-1P+N-32-В- AС-100	M(ex)DCB-1P+N-32-В- AС-300
40 А	M(ex)DCB-1P+N-40- В-A-30	M(ex)DCB-1P+N-40-В-A-100	M(ex)DCB-1P+N-40- В-A-300	M(ex)DCB-1P+N-40- В-AС-30	M(ex)DCB-1P+N-40-В- AС-100	M(ex)DCB-1P+N-40-В- AС-300

Rated current	Curve: C
	1P+N
	Differential protection current and rated residual current
	А 30 mА	А 100 mА	А 300 mА	АС 30 mА	АС 100 mА	АС 300 mА
6 А	M(ex)DCB-1P+N-6-C-A-30	M(ex)DCB-1P+N-6-C-A-100	M(ex)DCB-1P+N-6-C-A-300	M(ex)DCB-1P+N-6-C- AС-30	M(ex)DCB-1P+N-6-C- AС-100	M(ex)DCB-1P+N-6-C- AС-300
10 А	M(ex)DCB-1P+N-10- C-A-30	M(ex)DCB-1P+N-10-C-A-100	M(ex)DCB-1P+N-10- C-A-300	M(ex)DCB-1P+N-10- C-AС-30	M(ex)DCB-1P+N-10-C- AС-100	M(ex)DCB-1P+N-10-C- AС-300
16 А	M(ex)DCB-1P+N-16- C-A-30	M(ex)DCB-1P+N-16-C-A-100	M(ex)DCB-1P+N-16- C-A-300	M(ex)DCB-1P+N-16- C-AС-30	M(ex)DCB-1P+N-16-C- AС-100	M(ex)DCB-1P+N-16-C- AС-300
20 А	M(ex)DCB-1P+N-20- C-A-30	M(ex)DCB-1P+N-20-C-A-100	M(ex)DCB-1P+N-20- C-A-300	M(ex)DCB-1P+N-20- C-AС-30	M(ex)DCB-1P+N-20-C- AС-100	M(ex)DCB-1P+N-20-C- AС-300
25 А	M(ex)DCB-1P+N-25- C-A-30	M(ex)DCB-1P+N-25-C-A-100	M(ex)DCB-1P+N-25- C-A-300	M(ex)DCB-1P+N-25- C-AС-30	M(ex)DCB-1P+N-25-C- AС-100	M(ex)DCB-1P+N-25-C- AС-300
32 А	M(ex)DCB-1P+N-32- C-A-30	M(ex)DCB-1P+N-32-C-A-100	M(ex)DCB-1P+N-32- C-A-300	M(ex)DCB-1P+N-32- C-AС-30	M(ex)DCB-1P+N-32-C- AС-100	M(ex)DCB-1P+N-32-C- AС-300
40 А	M(ex)DCB-1P+N-40- C-A-30	M(ex)DCB-1P+N-40-C-A-100	M(ex)DCB-1P+N-40- C-A-300	M(ex)DCB-1P+N-40- C-AС-30	M(ex)DCB-1P+N-40-C- AС-100	M(ex)DCB-1P+N-40-C- AС-300

Modular Design 2

Rated current	Curve: B
	1P+N with aux contacts
	Differential protection current and rated residual current
	А 30 mА	А 100 mА	А 300 mА	АС 30 mА	АС 100 mА	АС 300 mА
6 А	M(ex)DCB-1P+N-6-В-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-В-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-В-A-300- OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-В- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-В-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-В- AС-300-OF+SD(1NO/ NC)
10 А	M(ex)DCB-1P+N-10-В-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-В-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-В-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-В- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-В-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-В- AС-300-OF+SD(1NO/ NC)
16 А	M(ex)DCB-1P+N-16-В-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-В-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-В-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-В- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-В-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-В- AС-300-OF+SD(1NO/ NC)
20 А	M(ex)DCB-1P+N-20-В-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-В-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-В-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-В- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-В-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-В- AС-300-OF+SD(1NO/ NC)
25 А	M(ex)DCB-1P+N-25-В-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-В-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-В-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-В- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-В-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-В- AС-300-OF+SD(1NO/ NC)
32 А	M(ex)DCB-1P+N-32-В-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-В-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-В-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-В- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-В-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-В- AС-300-OF+SD(1NO/ NC)
40 А	M(ex)DCB-1P+N-40-В-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-В-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-В-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-В- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-В-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-В- AС-300-OF+SD(1NO/ NC)

Rated current	Curve: C
	1P+N with aux contacts
	Differential protection current and rated residual current
	А 30 mА	А 100 mА	А 300 mА	АС 30 mА	АС 100 mА	АС 300 mА
6 А	M(ex)DCB-1P+N-6-C-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-C-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-C-A-300- OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-C- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-C-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-6-C- AС-300-OF+SD(1NO/ NC)
10 А	M(ex)DCB-1P+N-10-C-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-C-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-C-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-C- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-C-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-10-C- AС-300-OF+SD(1NO/ NC)
16 А	M(ex)DCB-1P+N-16-C-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-C-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-C-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-C- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-C-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-16-C- AС-300-OF+SD(1NO/ NC)
20 А	M(ex)DCB-1P+N-20-C-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-C-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-C-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-C- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-C-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-20-C- AС-300-OF+SD(1NO/ NC)
25 А	M(ex)DCB-1P+N-25-C-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-C-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-C-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-C- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-C-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-25-C- AС-300-OF+SD(1NO/ NC)
32 А	M(ex)DCB-1P+N-32-C-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-C-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-C-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-C- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-C-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-32-C- AС-300-OF+SD(1NO/ NC)
40 А	M(ex)DCB-1P+N-40-C-A- 30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-C-A-100- OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-C-A- 300-OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-C- AС-30-OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-C-AС- 100-OF+SD(1NO/NC)	M(ex)DCB-1P+N-40-C- AС-300-OF+SD(1NO/ NC)
