K-PANEL-C.S Central Control Panel
Description

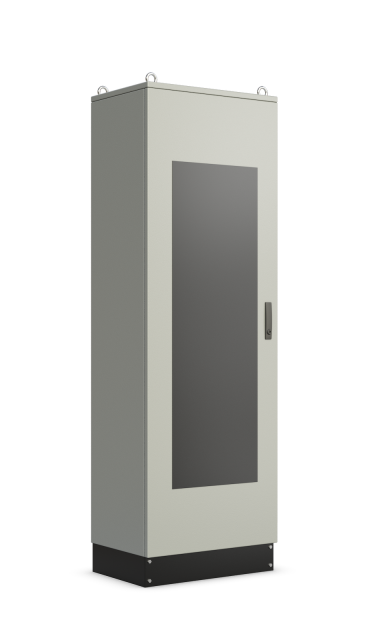

K-PANEL-C.S is a central control panel for EHT system for automatic heat tracing control of pipelines, equipment, floors and instrument lines. An integrated controller shares data with field equipment (sensors and actuators) and the EHT control server via ModBus TCP. The panel switches support data exchange via a fibre optic ring. An EHT central control panel is supplied as a kit consisting of a panel, programmable controller, EHT control server, switches and auxiliary equipment.
Design
1. Panel
2. Programmable controller
3. Industrial Ethernet switch
4. RS-485 to Ethernet converters (up to 4 pcs.)
5. Data acquisition controller
6. EHT control server
7. Optical termination box
8. 24 V power supply
9. Uninterrupted power supply
10. Fans (2 pcs.)
11. Power, control and interface cable terminals
P.O. Details
Marking
Item # K-PANEL-C.S
General Characteristics
|
Voltage |
230/400 V (TT, IT, TN-S, TN-C, TN-C-S) |
|
Frequency |
50 Hz |
|
Voltage of control circuits and automatic controls |
12/24/48/230 V |
|
IP rating |
54 max |
|
Body material |
steel |
|
Dimensions (WxHxD) |
630х1250х410 mm |
