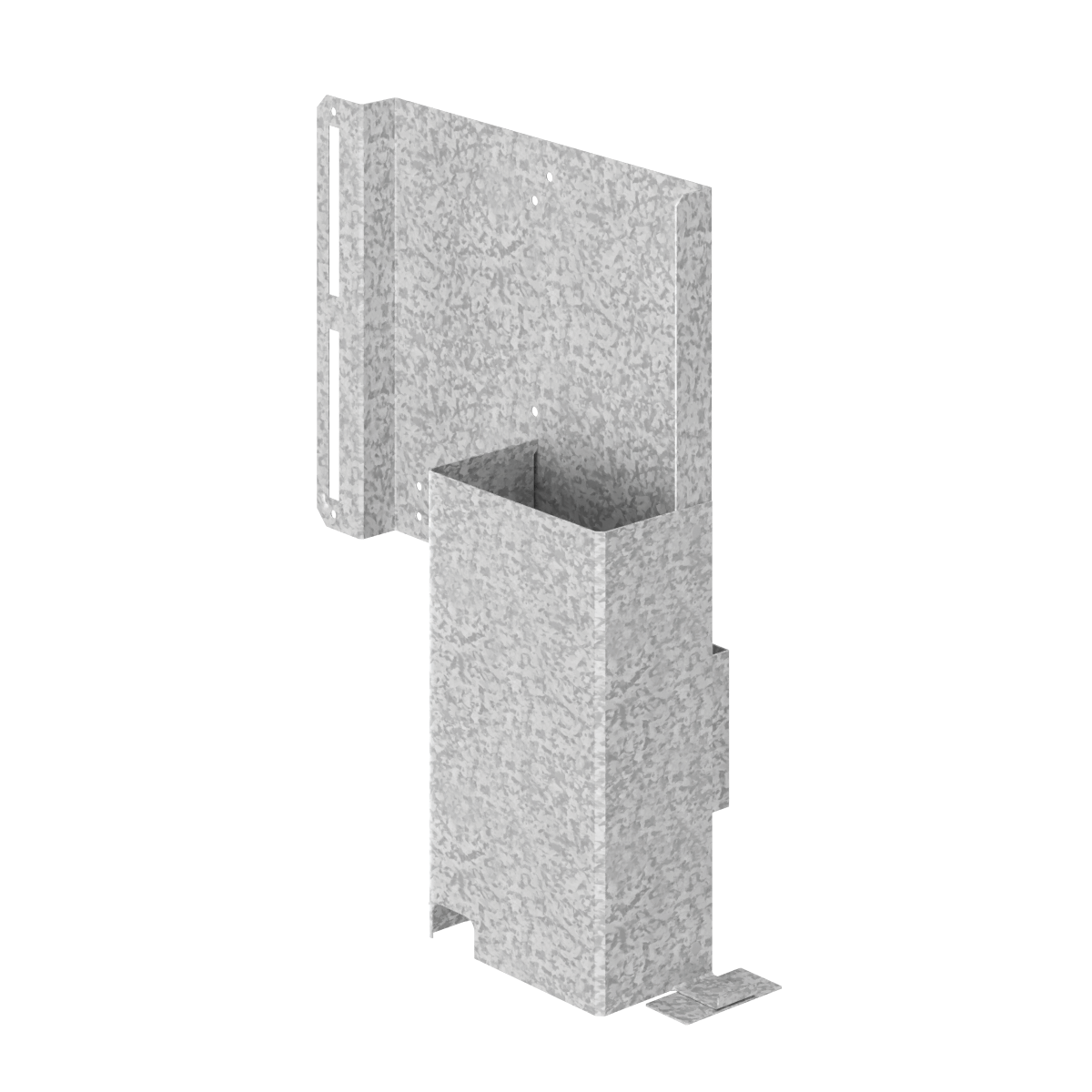

CK-126 Support Bracket (Multi-Purpose)
Description
Brackets are used to attach devices like power junction boxes or temperature sensors onto pipelines. A bracket is designed in a way that all incoming and outgoing cables are shielded to prevent any incidental damage. Support brackets are installed with mounting clamps that are not in the scope of supply.
Compatibility: CK-МHB, CК-НB sized 122, 182, and CK- PT100
Design
1. Power box attachment base
2. Power box gland shield
3. Bracket support with an internal cable duct
4. Temperature sensor box gland shieldP.O. Details
Please specify the following item number in your P.O. for a CK-126 Support Bracket : CK-126
