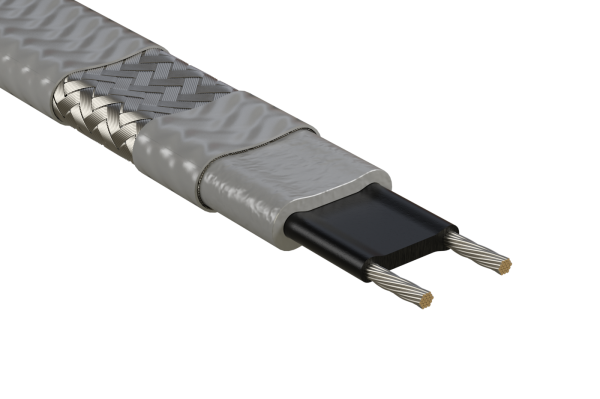

CK-FS.85 Self-Regulating Heating Element
Description
A parallel type self-regulating heating element CK-FS.85 is used for freezing protection or to maintain material temperature in the pipelines, vessels and equipment which are not subject to steam-out, for exposure to temperatures below 85°C.
A self-regulating heating element is supplied as a kit comprising a heat trace cable, connecting elements, an entry gland and termination.
Design
Fluoropolymer...................................................................................................CK-FS.85/_-f
Thermoplastic...................................................................................................CK-FS.85/_-t
P.O. Details
To place a P.O., please select the item number of the heating element from the Marking table that suits your project specification, and specify the jacket material and design length (m). E.g., a P.O. for a CK-FS.85 type heating element (fluoropolymer jacketed heat cable, 23 W/m rated output and 30 m design length), should contain the following number: CK-FS.85/23/30-f
General Characteristics
|
Max exposure temperature |
85°С |
|
Max maintenance temperature |
65°С |
|
Supply voltage |
~230 В |
|
Jacket material |
Fluoropolymer, thermoplastic |
|
Wire material |
Cu, Cu-Ni alloy |
|
Type of heat cable |
Parallel, self-regulating |
|
Hazardous area classification |
Hazardous, normal |
|
Certificate, Ex protection |
Pursuant to CU TR 012/2011, # RU C-RU. НА65.В.00705/20, 1Ex e IIC T6...T2 Gb X, Ex tb IIIC T85°С...T300°С Db X |
|
UV resistance |
Yes |
Output Rating
Marking
| CK-FS.85/10 | 10 W/m |
| CK-FS.85/15 | 15 W/m |
| CK-FS.85/25 | 25 W/m |
| CK-FS.85/33 | 33 W/m |
