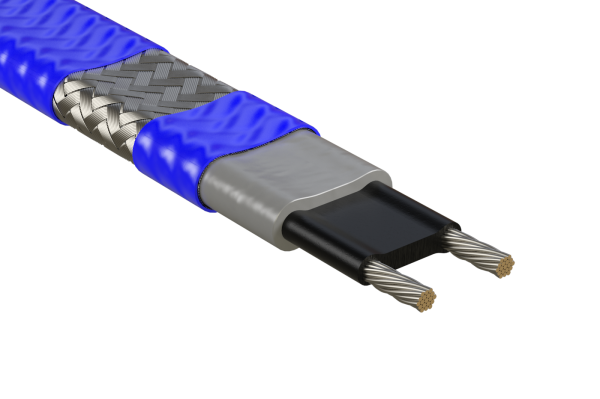

CK-FS.S Self-Regulating Heating Element
Description
A CK-FS.S parallel type self-regulating heating element is used for freezing protection or to maintain material temperature in the pipelines, vessels and equipment, to warm floors, roads and ramps. A heat trace cable is embedded in concrete using a CK-IEK.F mounting kit.
A self-regulating heating element is supplied as a kit comprising a heat trace cable, connecting elements, an entry gland and termination.

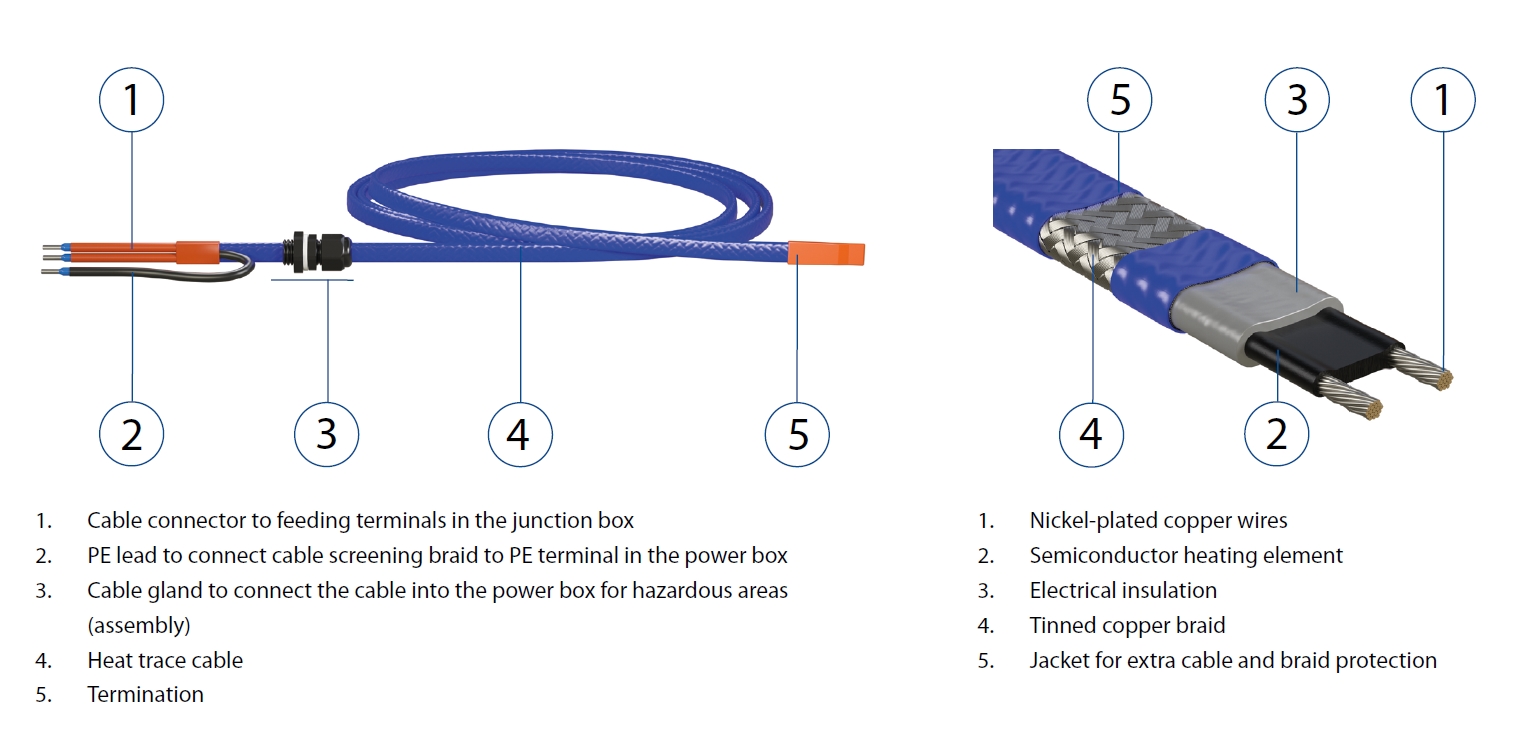

Design
P.O. Details
To place a P.O., please select the item number of the heating element from the Marking table that suits your project specification, and specify the jacket material and design length (m). E.g., a P.O. for a CK-FS.S type heating element (fluoropolymer jacketed heat cable, 102 W/m rated output and 30 m design length), should contain the following number: CK-FS.S/102/30-t
General Characteristics
|
Max exposure temperature |
121°С |
|
Max maintenance temperature |
121°С |
|
Supply voltage |
~230 В |
|
Jacket material |
Thermoplastic, silicone |
|
Wire material |
Cu, Cu-Ni alloy |
|
Type of heat cable |
Parallel, self-regulating |
|
Hazardous area classification |
Hazardous, normal |
|
Certificate, Ex protection |
Pursuant to CU TR 012/2011, # RU C-RU. НА65.В.00705/20, 1Ex e IIC T6...T2 Gb X, Ex tb IIIC T85°С...T300°С Db X |
Marking
| CK-FS.S/90 | 60 W/m |
Modifications
Parallel type self-regulating heating elements CK-FS.S are produced in several designs with various jackets of heat trace cables. The jacketing material is identified with a Roman letter at the end of the item number.
Thermoplastic..................................................................................................CK-FS.S/90-t
