CK-ML Constant Wattage Heating Element
Description

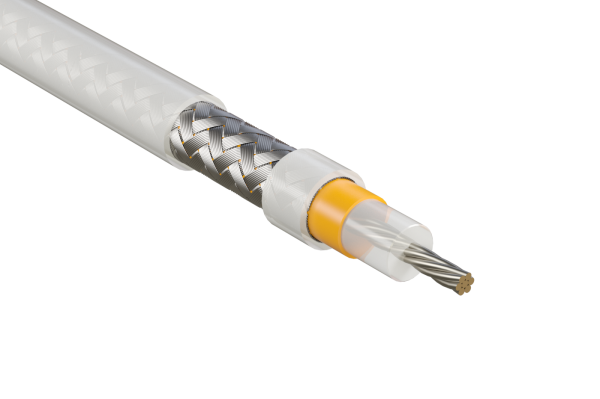

A CK-ML series type heating element is used for freezing protection or to maintain material temperature in the pipelines, vessels and equipment for exposure to temperatures below 260 °C. A series type heating element is supplied as a kit consisting of a heat trace cable, connectors and cold lead cables.
Design
Heating elements are sized to the Customer’s specifications. The scope of supply includes a made-to-order heat cable, with wires for terminal connection and end termination, and a properly sized gland. A gland is needed to connect the cable inside the power box while ensuring adequate tightness for hazardous area applications.
P.O. Details
To place a P.O., please select the item number of the heating element from the Marking table that suits your project specification, and specify the design length (m). E.g., a P.O. for a CK-ML type heating element with a heat trace cable, resistivity = 100 Ω/km and design length = 30 m, @ 230 V, PFA jacketed, should contain the following number: CK-ML/100/1P/30
General Characteristics
|
Max exposure temperature |
260°С |
|
Max maintenance temperature |
200°С |
|
Supply voltage |
~750 В |
|
Jacket material |
Fluoropolymer |
|
Wire material |
Cu, Ni-Cr alloy, Cu-Ni alloy |
|
Type of heat cable |
Series type, constant wattage |
|
Hazardous area classification |
Hazardous, normal |
|
Certificate, Ex protection |
Pursuant to CU TR 012/2011, # RU C-RU. НА65.В.00705/20, 1Ex e IIC T6...T2 Gb X, Ex tb IIIC T85°С...T300°С Db X |
Marking
|
Item # |
Resistivity @ 20°C, Ω/km |
Cable OD, mm |
|---|---|---|
| CK-ML/1.8 | 1,8 | 7,20 |
| CK-ML/2.9 | 2,9 | 7,00 |
| CK-ML/4.4 | 4,4 | 6,30 |
| CK-ML/7 | 7 | 5,50 |
| CK-ML/7.1 | 7,1 | 5,10 |
| CK-ML/7.2 | 7,2 | 5,54 |
| CK-ML/9.7 | 9,7 | 4,75 |
| CK-ML/10 | 10 | 5,10 |
| CK-ML/11.7 | 11,7 | 4,90 |
| CK-ML/11.9 | 11,9 | 4,60 |
| CK-ML/15 | 15 | 4,70 |
| CK-ML/17.4 | 17,4 | 4,30 |
| CK-ML/17.8 | 17,8 | 4,60 |
| CK-ML/24.8 | 24,8 | 4,30 |
| CK-ML/25 | 25 | 4,60 |
| CK-ML/31.5 | 31,5 | 4,90 |
| CK-ML/32.7 | 32,7 | 4,60 |
| CK-ML/50 | 50 | 4,70 |
| CK-ML/62 | 62 | 4,28 |
| CK-ML/65 | 65 | 4,40 |
| CK-ML/80 | 80 | 4,30 |
| CK-ML/100 | 100 | 4,90 |
| CK-ML/142 | 142 | 4,20 |
| CK-ML/150 | 150 | 4,60 |
| CK-ML/178 | 178 | 3,96 |
| CK-ML/200 | 200 | 4,40 |
| CK-ML/250 | 250 | 4,00 |
| CK-ML/320 | 320 | 4,50 |
| CK-ML/340 | 340 | 3,88 |
| CK-ML/380 | 380 | 4,40 |
| CK-ML/410 | 410 | 4,28 |
| CK-ML/480 | 480 | 4,30 |
| CK-ML/490 | 490 | 4,05 |
| CK-ML/590 | 590 | 3,96 |
| CK-ML/600 | 600 | 4,20 |
| CK-ML/665 | 665 | 3,90 |
| CK-ML/700 | 700 | 4,10 |
| CK-ML/765 | 765 | 3,84 |
| CK-ML/810 | 810 | 4,30 |
| CK-ML/1000 | 1000 | 4,20 |
| CK-ML/1300 | 1300 | 3,75 |
| CK-ML/1440 | 1440 | 4,10 |
| CK-ML/1480 | 1480 | 3,71 |
| CK-ML/1750 | 1750 | 4,10 |
| CK-ML/1865 | 1865 | 3,96 |
| CK-ML/2000 | 2000 | 4,20 |
| CK-ML/2825 | 2825 | 3,78 |
| CK-ML/3000 | 3000 | 4,10 |
| CK-ML/3950 | 3950 | 3,66 |
| CK-ML/5900 | 5900 | 3,54 |
| CK-ML/7000 | 7000 | 3,5 |
| CK-ML/8000 | 8000 | 3,80 |
