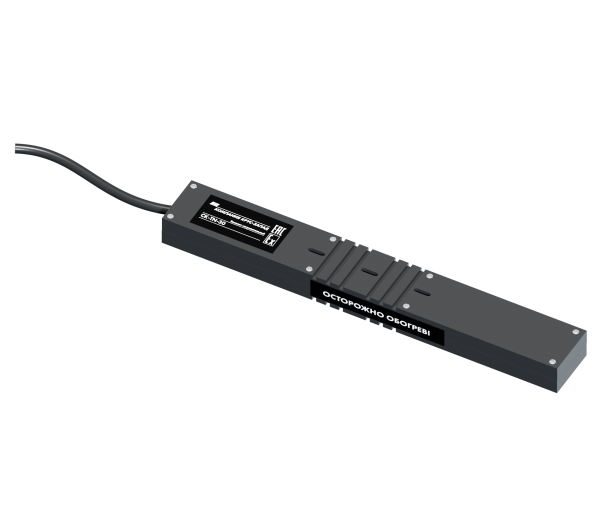

CK-TN-A self-regulating heating element
Description
CK-TN-A used for cabinet (including instrument cabinets) and enclosure heat tracing.
Temperature is maintained at no overheating risk as a self-regulating heat cable is used as the heater.
P.O. Details
To
place a P.O., please select the item number of the heater from the Marking
table that suits best your project specification. E.g., a P.O. for a 20 W CK-TN-A
heater should contain the following number: CK-TN-A-20
General Characteristics
| Max surface temperature | 55°C |
| Rated voltage | 230 V, 50 Hz |
| Heater power | 45 W max |
|
Heater power |
300 W max |
| Hazardous area classification | Hazardous, normal |
| Certificate, Ex protection | Pursuant to ТР ТС 012/2011, № ТС RU C-RU.НА65.В.00705/20, 1Ex e IIC T6...T3 Gb X, Ex tb IIIC Т85°С...Т200°С Db X |
| Overall dimensions, WxHxD* | 600x20x40 mm max |
* Overall dimensions may vary depending on the customer preferences
Marking
|
Item # |
Overall dimensions, WxHxD, mm |
Output @ 10°C, W |
| CK-TN-A-20 | 300х20х40 | 20 |
| CK-TN-A-30 | 400х20х40 | 30 |
| CK-TN-A-45 | 600х20х40 | 45 |
